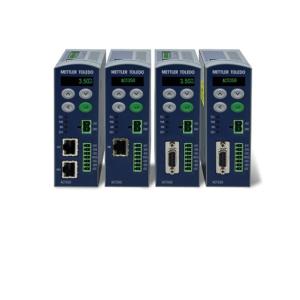

Application of ACT Weight Transmitters in Industrial Weighing Systems
These compact, easy-to-integrate weight transmitters are designed for OEMs and control system integrators with connectivity, cabinet space, and speed in mind. The integrated display, including a keyboard and four LEDs, allows quick status checks without any software tools or remote displays. With condition monitoring capabilities, the ACT family includes many functions that report both running status and error constrictions. Easily integrate the extremely accurate modules and scales for automatic weighing applications where accuracy is critical to quality and cost savings.
With certified device drivers, ACT weight transmitters can be easily integrated into most common automation systems. This built-in Ethernet switch allows daisy chain and ring connection to the PLC/DCS, which reduces project and maintenance costs. Choose from the following models in the ACT family to integrate the weighing device that best meets your needs:
- ACT100 / ACT100xx: Connect strain-gauge scales and achieve measurement at fast speeds with analog output
- ACT350 / ACT350xx: Offer precise measurements at excellent speeds for conventional strain-gauge weighing technology, which is ideal for many filling and sorting applications
- ACT350 / ACT350xx POWERCELL®: Deliver the additional benefit of condition monitoring for individual load cells, that will warn you before a potential issue or malfunction becomes costly
- ACT350 Precision: Enable fast, simple and easy PLC connectivity to high-precision weigh modules and scales for machines requiring the highest level of accuracy
A built-in display and keypad provides easy setup, diagnostics, status (indicated by text) and weight for local calibration. Four indicator LEDs show network status and device conditon. The local display and keypad provide easy setup and diagnostics directly at the unit. Transmitter status and weight value are easy to check independent of other devices. In addition, the compact DIN-rail housing saves valuable cabinet space.
The ACT transmitters are integrated with a web server, allowing for setup and control via Ethernet remotely from any network location in the facility. With the user-friendly interface, your machines can be up and running in minutes, and users benefit from easy setup, remote status checks and simplified servicing.
Once installed, the update rate allows for improved efficiency and optimized weighing processes in any machine, leading to higher overall operational throughput.
We offer precision instruments and services for many applications in research and development, quality control, production, logistics and retail to customers around the world.
The ACT350 is one of the most versatile weighing transmitters available today for conventional strain gauge weighing technology. The factory pre-configured PLC communication interface in a DIN rail mounting scheme makes the ACT350 a perfect match for basic industrial process weighing applications.
FAQ:
We recommend using analog weigh modules such as MultiMount and the TrasDSP filter of the ACT350 weight transmitter. That would update the PLC reading up to 800/s and provide excellent accuracy.
METTLER TOLEDO single-point load cells start at 3 kg and can be easily connected to Allen Bradly/Rockwell PLCs via ACT350 transmitters
For high-speed weighing, two elements are important. First, a high update rate of 100 Hz and beyond is required. Many of our terminals and transmitters update at that speed. Second, fast filtering is required to get rid of noise. METTLER TOLEDO TraxDSP filters are designed for this purpose.
